Features of Pellet Mill:
1.This kind of animal feed pellet machine is mainly used to make feed
pellets for rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on.
2.Our pellet machines just need little power consumption and small occupation.
3.The feed pellet mill is packed in wooden case suitable for long distance transportation.
4. International advance steam fittings and imported pressure reduction valve.
5. Flat die is made with international advanced equipment for long lifespan.
6. Drive with heavy duty gearbox, which can produce continuously in most adverse condition.
7. The key parts are made of alloy steel to be very strong and malleable.
8. The important key elements are of high performance with long life and low maintenance cost .
2.Technical data :
| Model No. | Power(E-motor) | Feed output | Wood output | N/G weight(kg) | Pellet diameter | Packing Size(cm) |
| KL120B/C | 2.2kw 220v 1phase | 60-100 | 40-60 | 80/100kg | 2.5-10mm | 75*35*65 |
| KL120B/C | 3km 380v 3phase | 60-100 | 40-60 | 80/100kg | 2.5-10mm | 75*35*65 |
| KL150B/C | 4km 380v 3phase | 90-120 | 50-90 | 95/115kg | 2.5-10mm | 75*35*65 |
| KL200B/C | 7.5km 380v 3phase | 200-300 | 110-140 | 200/230kg | 2.5-10mm | 100*46*90 |
| KL230B/C | 11km 380v 3phase | 300-400 | 150-190 | 290/320kg | 2.5-10mm | 114*54*93 |
| KL260B/C | 15km 380v 3phase | 400-600 | 220-280 | 330/360kg | 2.5-10mm | 122*53*107 |
| KL300B/C | 22km 380v 3phase | 600-800 | 300-360 | 410/450kg | 2.5-10mm | 128*58*105 |
| KL360B/C | 22km 380v 3phase | 700-900 | 300-380 | 470/550kg | 2.5-10mm | 134*58*106 |
| KL400B/C | 30km 380v 3phase | 900-1100 | 400-550 | 630/660kg | 2.5-10mm | 145*62*11 |

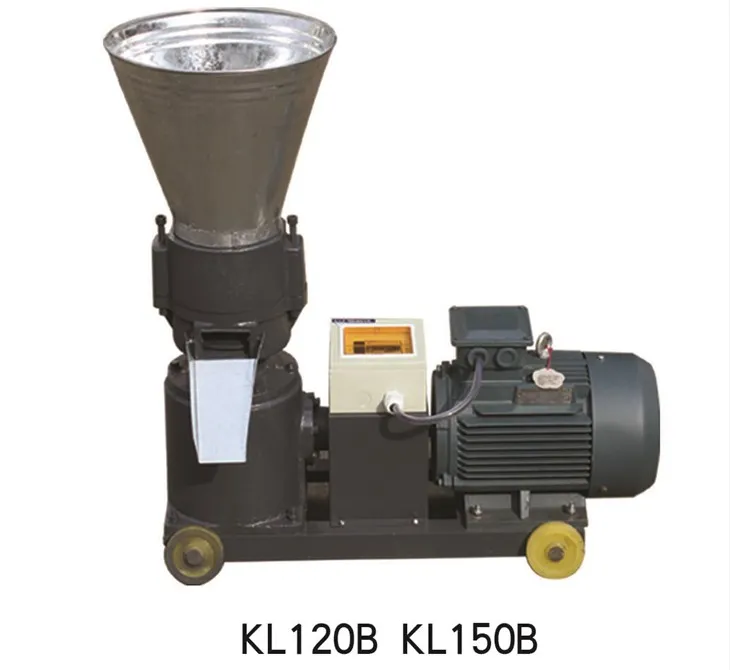

3.Details of the KL120 feed pellet machine
Laizhou Chengda Machinery Co., Ltd. is a factory established in 1992. specialized in pellet machine,hammer mill , and complete pellet production line. All machines meet the CE standard.
If you want to get more information feel free to add mine whatsapp:
0086 15264530427
| Model No. | Power(E-motor) | Feed output | Wood output | N/G weight(kg) | Pellet diameter | Packing Size(cm) |
| KL120B/C | 2.2kw 220v 1phase | 60-100 | 40-60 | 80/100kg | 2.5-10mm | 75*35*65 |
| KL120B/C | 3km 380v 3phase | 60-100 | 40-60 | 80/100kg | 2.5-10mm | 75*35*65 |
| KL150B/C | 4km 380v 3phase | 90-120 | 50-90 | 95/115kg | 2.5-10mm | 75*35*65 |
| KL200B/C | 7.5km 380v 3phase | 200-300 | 110-140 | 200/230kg | 2.5-10mm | 100*46*90 |
| KL230B/C | 11km 380v 3phase | 300-400 | 150-190 | 290/320kg | 2.5-10mm | 114*54*93 |
| KL260B/C | 15km 380v 3phase | 400-600 | 220-280 | 330/360kg | 2.5-10mm | 122*53*107 |
| KL300B/C | 22km 380v 3phase | 600-800 | 300-360 | 410/450kg | 2.5-10mm | 128*58*105 |
| KL360B/C | 22km 380v 3phase | 700-900 | 300-380 | 470/550kg | 2.5-10mm | 134*58*106 |
| KL400B/C | 30km 380v 3phase | 900-1100 | 400-550 | 630/660kg | 2.5-10mm | 145*62*11 |
3.Details of the KL120B feed pellet machine
